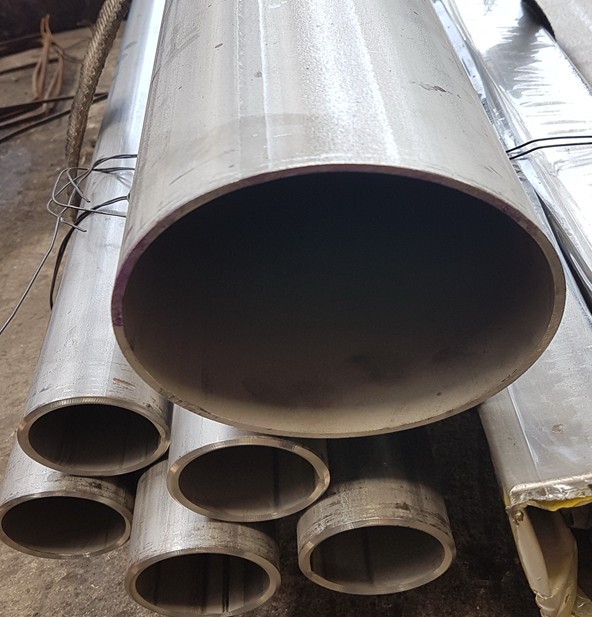

ท่อด้านสเตนเลส
| ท่อสเตนเลสด้าน #10 ,#40,#80 | |||||
|---|---|---|---|---|---|
| NB | ขนาด Size | วัดนอก(OD.) mm. | SCH#10 mm. | SCH#40 mm. | SCH#80 mm. |
| 1/4" | 13.72 | 2.24 | |||
| 3/8" | 17.15 | 2.31 | |||
| 15 | 1/2" | 21.34 | 2.11 | 2.77 | 3.73 |
| 20 | 3/4" | 26.67 | 2.11 | 2.87 | 3.91 |
| 25 | 1" | 33.40 | 2.77 | 3.38 | 4.55 |
| 32 | 1 1/4" | 42.16 | 2.77 | 3.56 | 4.85 |
| 40 | 1 1/2" | 48.26 | 2.77 | 3.68 | 5.08 |
| 50 | 2" | 60.33 | 2.77 | 3.91 | 5.54 |
| 65 | 2 1/2" | 73.03 | 3.05 | 5.16 | 7.01 |
| 65 | 2 1/2" | 76.03 | 3.05 | 5.16 | 7.01 |
| 80 | 3" | 88.9 | 3.05 | 5.49 | 7.62 |
| 100 | 4" | 114.3 | 3.05 | 6.02 | 8.56 |
| 125 | 5" | 141.3 | 3.4 | 6.55 | 9.53 |
| 150 | 6" | 168.28 | 3.4 | 7.11 | 10.97 |
| 200 | 8" | 219.08 | 3.76 | 8.18 | 12.7 |
| 250 | 10' | 273.05 | 4.19 | 9.27 | 12.7 |
| 300 | 12" | 323.85 | 4.57 | 9.52 | 12.7 |
| 350 | 14" | 355.6 | 4.78 | 9.52 | - |
| 400 | 16" | 406.4 | 4.78 | 9.52 | - |
| 450 | 18" | 457.2 | 4.78 | 9.52 | - |
| 500 | 20" | 508 | 5.54 | 9.52 | - |
